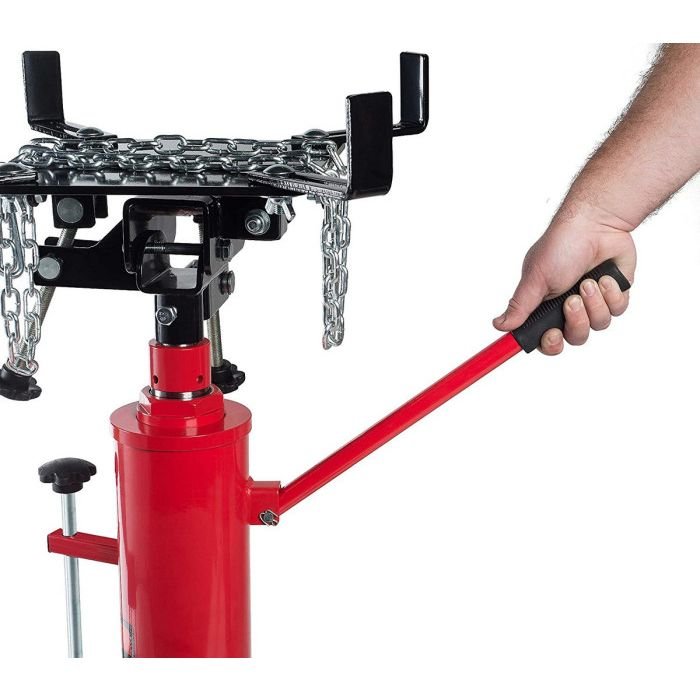

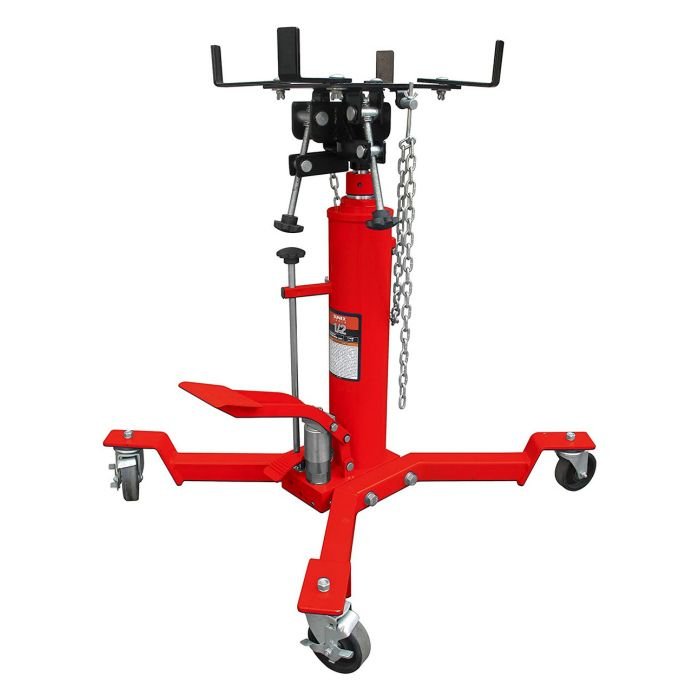

The Sunex Tools Telescoping Manual Transmission Jack allows a single technician to remove, move, or install heavy transmissions and transfer cases for vehicles on a lift. The wide chassis distributes the load safely and keeps the load stable. The universal saddle bracket is adjustable in four directions of tilt that allowing for easy positioning of the load. The low lift height allows for easy transfer to the workbench and the max lift height accommodates all technicians.
Features
- Under Hoist Lift Removal, Installation, and Moving of Transmissions and Transfer Cases
- Low Lift Height for Easy Transfer to Work Bench
- Maximum Lift Height Accommodates All Technicians

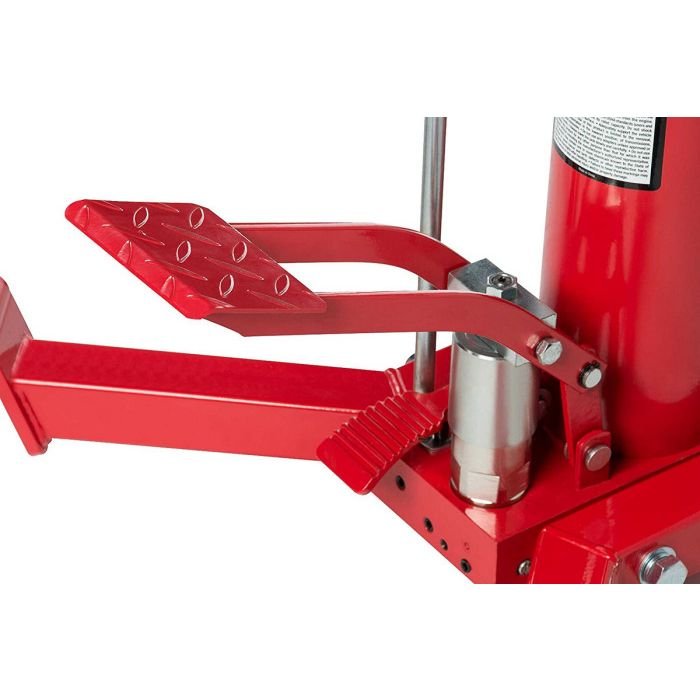

- Foot Activated Pump Pedal for Hands Free Raising of Load
- Chain Tie Down Secures the Load to Saddle
- Foot Activated Pedal Provides Slow Controlled Lowering
- Overload Valve Prevents Overload or Over Extension
- Four Full Swivel Ball Bearing Casters for Maneuverability
- Locking Front Casters
Specifications
- Capacity: 1/2 Ton 1,000 lbs.
- Saddle Tilt Fore and Aft: 43° by 24°
- Saddle Tilt Side to Side Aft: +10°, -28°
- Base Mounting Area (in.): 21.3″ x 35″

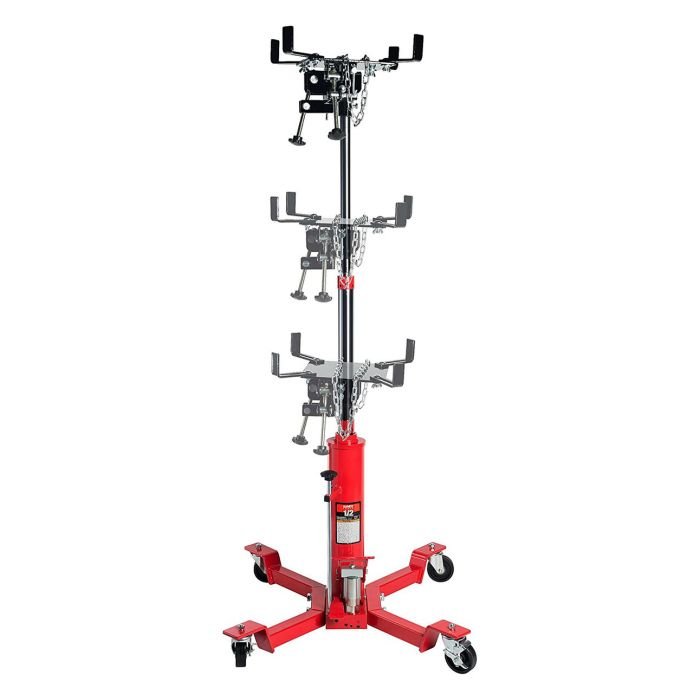

- Max Height: 75.5″
- Min Height: 35″
- Travel: 40″
- Dimensions: 39.4″ x 27.2″ x 14.2″
- Weight: 167 lbs.
- Warranty: 1 Year
