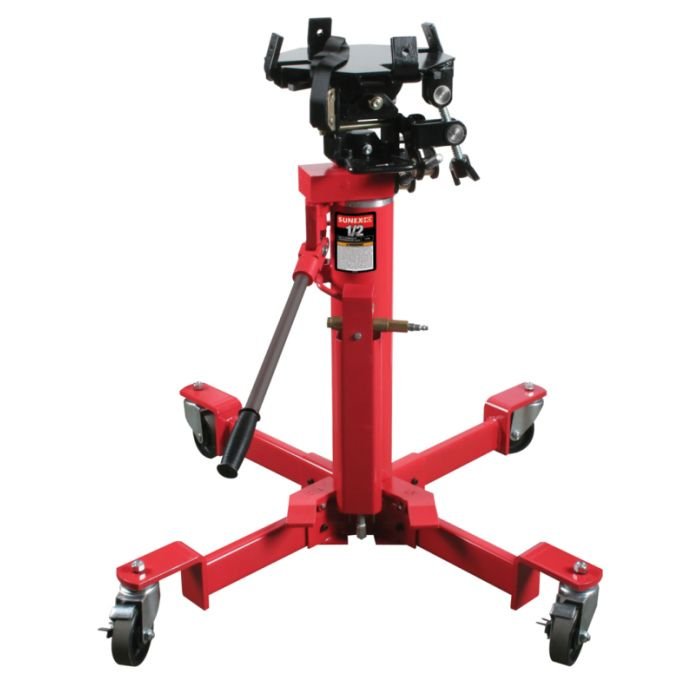

The Sunex Tools Telescoping Air Hydraulic Transmission Jack allows a single technician to remove, move, or install heavy transmissions and transfer cases for vehicles on a lift. The wide chassis distributes the load safely and keeps the load stable. The universal saddle bracket is adjustable in four directions of tilt that allows for easy positioning of the load. The low lift height allows for easy transfer to workbench and the max lift height accommodates all technicians.
Features
- Under Hoist Removal, Installation, and Moving of Transmissions and Transfer Cases
- Low Lift Height for Easy Transfer to Work Bench
- Maximum Lift Height Accommodates All Technicians
- Foot Activated Pedal Raises Air Cylinder Ram to Max Load in Seconds
- Manual Pump Second Stage Quickly Raises Saddle to Desired Work Height
- Heavy-Duty Nylon Locking Strap with Ratchet Fingers for Securing Load to Saddle
- Slow Controlled Lowering
- Foot Activated Pedal for First Stage
- Hydraulic Release Knob for Second Stage
- Four Full Swivel Ball Bearing Casters for Maneuverability
- Locking Front Casters
Specifications
- Capacity: 1/2 Ton 1,000 lbs.
- Saddle Tilt Fore and Aft: 37° by 26°
- Saddle Tilt Side to Side Aft: 12°
- Base Mounting Area (in.): 30″ x 30″
- Max Height: 73.5″
- Min Height: 35″
- Travel: 38″
- Required Air Pressure: 100 psi
- Shipping Dimensions: 44.46″ x 15.36″ x 18.11″
- Weight: 167 lbs.
- Warranty: 1 Year
