LowMax 4 Kayak Trailer Package
The LowMax™ has a 600 lb capacity leaf spring suspension system that delivers a smooth ride under full load. The 78” wide cross bars provide plenty of space for carriers & gear. With the bars positioned only 24” from the ground, loading and unloading heavy boats has never been easier. The 20″ diameter by 8″ wide pontoon-style tires have a maximum speed rating of 70 MPH which is perfect for most roadways.
The detachable tongue and rubber bumpers mounted to the rear cross member allow this trailer to be stored upright when not in use. Features include LED “plug & play” lights, D-Ring tie-downs, tongue lift handle and 2″ receiver. Proudly built in the USA from high grade galvanized steel for years of dependable service. All workmanship & parts guaranteed with a Five-Year Limited Warranty. Assembles in 4-5 hours with normal shop tools.

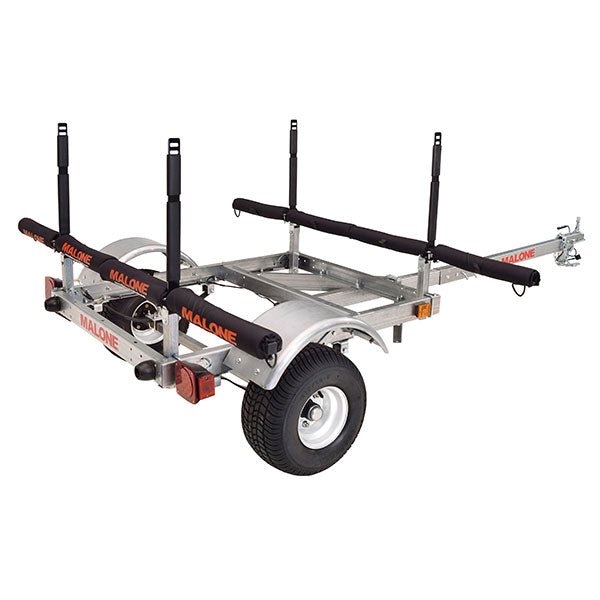

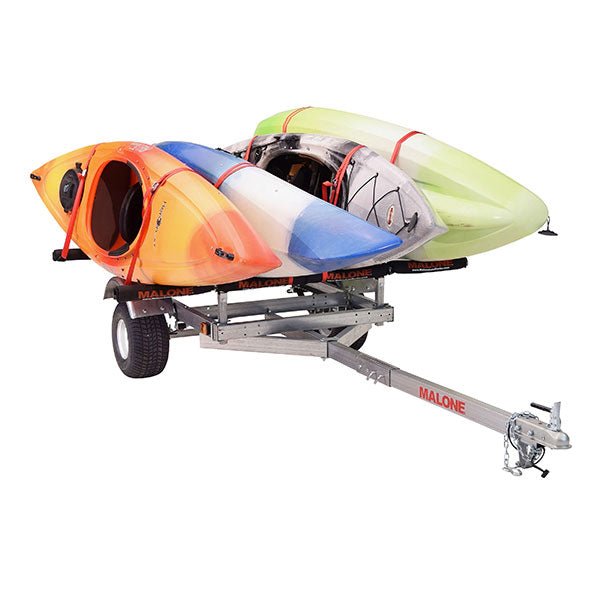

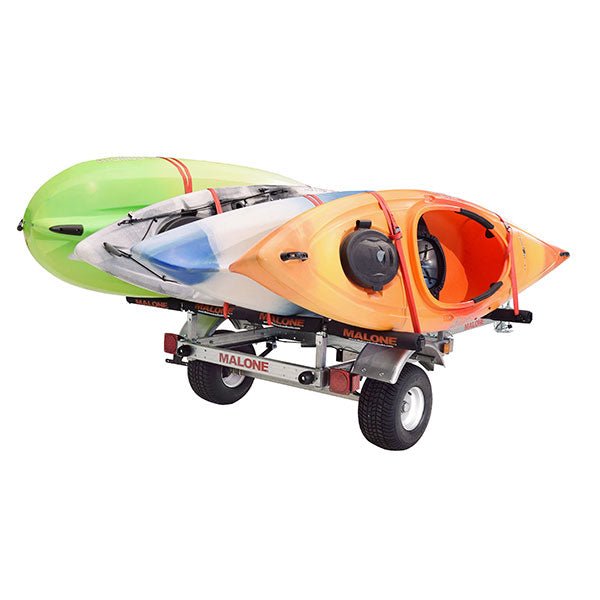

The 2 Stackers & 4 Sets Rack Pads package includes two sets of stacker-style carriers with mounting hardware and cam style load straps. These carriers are coated to resist corrosion and are padded to protect the kayak’s finish. Also including four sets of MPG313 Rack Pads to protect the kayaks from cross bar damage during transport. Best Application: Four medium to large sized recreational or touring kayaks with traditional V-bottom or non-traditional pontoon-style hull designs.

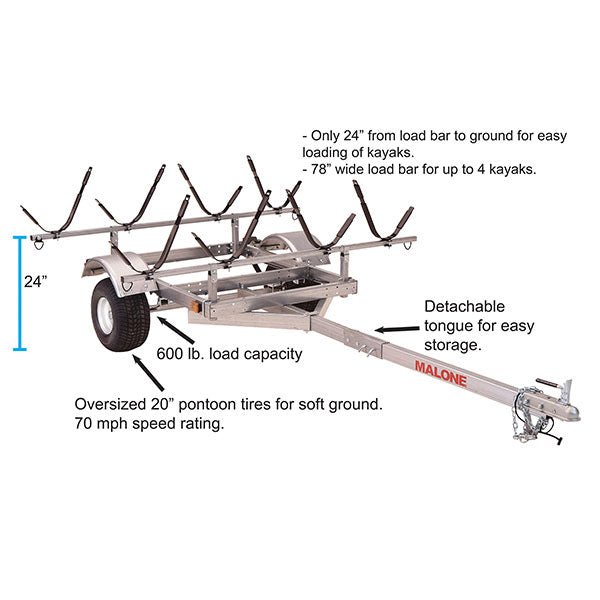

The 4 J-Racks package includes four sets of J-style carriers with mounting hardware and cam style load straps. These well performing carriers are coated to resist corrosion and padded to protect the kayak’s finish. Best Application: Four medium to large sized recreational or touring kayaks with traditional V-bottom hull designs.
LowMax 4 Kayak Trailer Specs
- Load Capacity: 600 lb / 17′ canoe or kayak

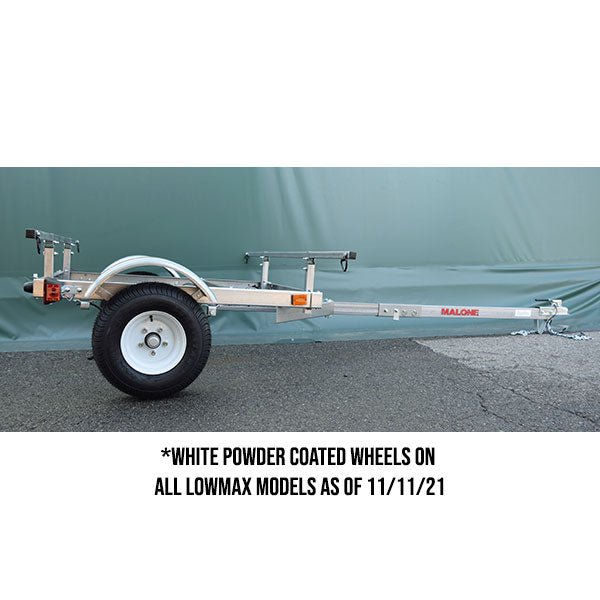

- Wheels & Tires: White Powder coated 5-lug wheels with 20″ Diameter x 8″ wide pontoon-style tires
- Maximum Speed Rating: 70 MPH
- Length: 11′ 3″; 7′ 4″ (tongue detached)
- Width: 60″ Without crossbars
- Frame Width Assembled: 40″ Width within Fenders
- Weight: 206 lb Without accessories
- Frame: Marine grade galvanized steel
- Hitch: 2″ receiver
- Required Ball Size for Vehicle Attachment: 2″
- Mounting Height for Ball from Ground: 16″
- Recommended Tire Pressure: 40 PSI
- Tongue Weight (Unloaded): 37 lb
- Cross Bar Spread: 36″ – 49″
- Height of Cross Bars from Ground: 24″
LowMax 4 Kayak Trailer Features
- Marine grade galvanized steel frame
- DOT & Transport Canada approved
- L.E.D. “plug & play” lights
- Galvanized steel fenders
- 78’’ steel, 1-1/4’’ square load bars featuring d-ring tie-downs

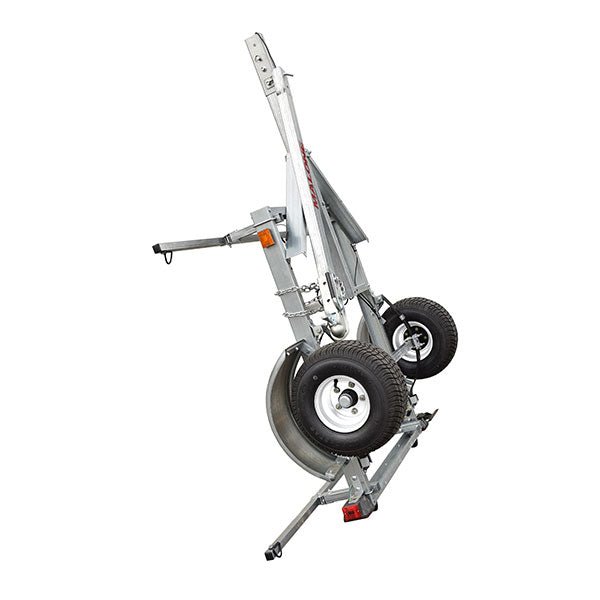

- Rubber bumpers for vertical storage
- *Optional Stacker-style carriers and Rack Pads to transport four boats
- *Optional J-style carriers to transport four boats

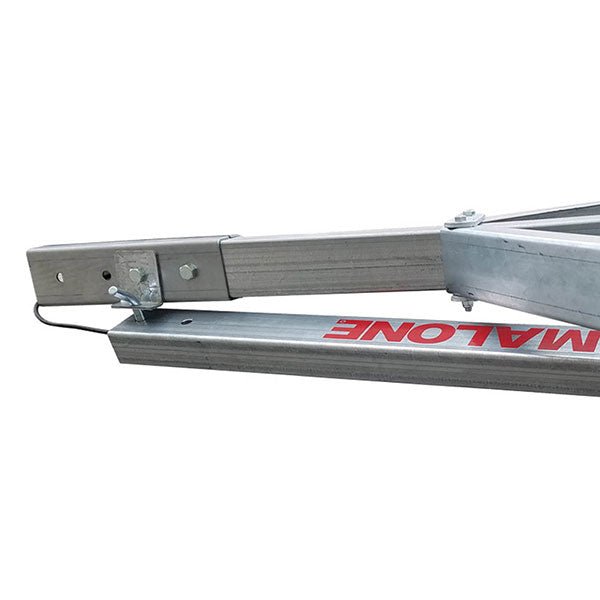

- Detachable tongue to lower storage space requirements
- Tongue lift handle
- (2) 20″ Diameter, 8″ Wide Pontoon-Style Tires & Wheels
- *Optional (2) Stacker-Style Kayak Carriers (set of 2) w/ Hardware & Load Straps
- *Optional (4) Rack Pads (set of 2)
- *Optional (4) J-Style Kayak Carriers (set of 2) w/ Hardware & Load Straps
- (1) Reinforced 2pc Steel Tongue
- (1) Lift Handle
- (2) 78″ Load Bars with Frame Brackets & Supports
- DOT & Transport Canada Approved L.E.D. Lighting
- Pre-Tested Electrical System
- Pre-Fitted Chassis Components
- (1) Instruction Manual & Registration Documentation
- Assembly Required – Multi-Boxed Item – Includes 6 Cartons
