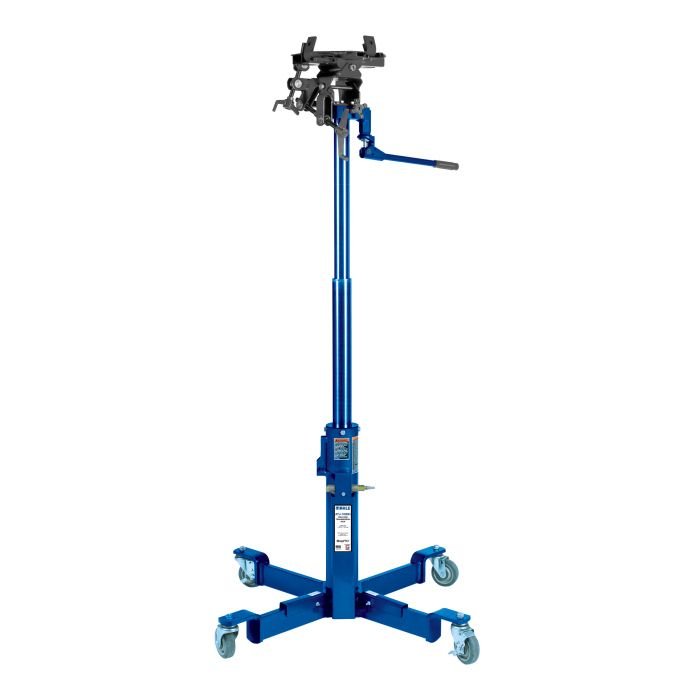

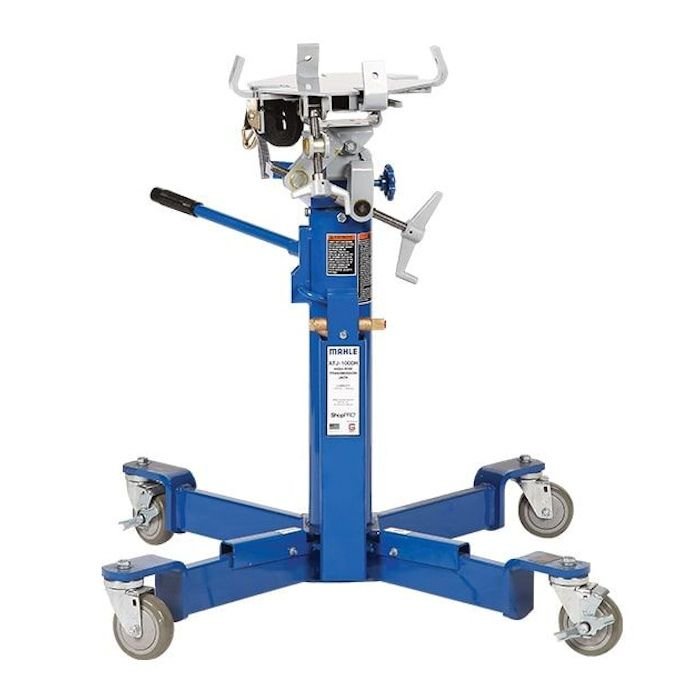

The MAHLE ShopPRO High-Rise Automotive Transmission Jack features the most flexible, usable, and safe head-plate design to boost productivity with it’s 1,000 lbs. capacity. The 4″ swivel casters make it easy to maneuver around your shop or garage.
Features
- 1,000 lbs. Capacity
- Two-Stage Design: 1st stage 100% air operated for speed; 2nd stage hydraulic for precise control
- Swivel casters make for easy maneuverability
- Nylon Speed-Strap quickly and conveniently secures the load
- Heavy-Duty acme threaded screws provide greater bearing surface for easier tilt adjustments
- Additional adapters available
Optional Accessories
- 485 80026 00 #90 Adapter
- 485 80027 00 #45 Adapter
- 485 80028 00 2″ Height Adapter
- 485 80029 00 4T80E Adapter
- 485 80030 00 Adapter Kit
Specifications
- Capacity: 1,000 lbs. (454 kg)
- Minimum Start Height: 34.5 in (88 cm)
- Maximum Lift Height: 72 in (183 cm)
- Power: 1st Stage Air / 2nd Stage Hydraulic
- Head Plate Dimensions: 11.5 in x 11.5 in (29 cm x 29 cm)
- Overall Dimensions: 41″ W x 41″ L (104 x 104 cm)
- Swivel Caster Diameter: 4 in (10 cm)
- Required Air Pressure: 90 to 160 psi (6.2 to 11.0 bar)
- Tilt Forward: 40°
- Tilt Rear: 20°
- Tilt Side to Side: 10°
- Shipping Weight: 125 lbs. (57 kg)
