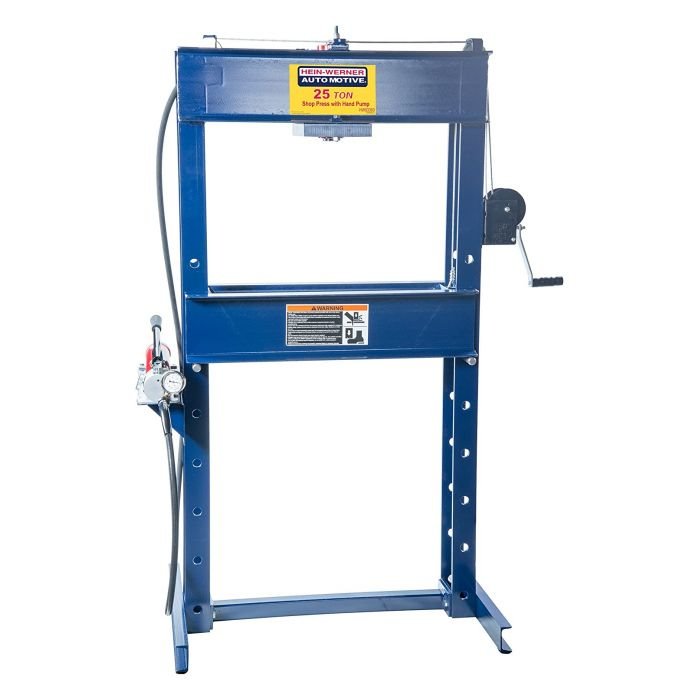

The Hein-Werner HW93300 is a 25 Ton Manual Hydraulic Shop Press with a manual 6″ stroke hand pump. Hein-Werner shop presses are excellent for bending, bonding or straightening applications, ideal for the removal or installation of gears, universal joints, pulleys, wrist pins and other press jobs, and feature industrial grade rams and pumps, multi-position beds, and heavy steel welded construction.
Features
- 25 Ton Capacity Fixed Head Press
- 6″ Stroke Single Acting Cylinder
- 61 cu. in. oil capacity Single Acting Hand Pump
- Frames Made in the USA
- Excellent for bending, bonding or straightening applications
- Ideal for the removal or installation of gears, universal joints, pulleys, wrist pins and other press jobs
- Industrial Grade Hydraulics
- Includes hand winch for easy bed adjustments
- Multi-position bed for work height adjustment
- Heavy steel welded construction
- 4″ pressure gauge
Specifications
- Frame Capacity: 25 Tons
- Frame Type: H Style
- Cylinder: H2506
- Cylinder Type: Single Action
- Cylinder Stroke: 6″
- Ram Travel: 5″
- Strokes to Extend Piston 1″: 20
- Pump: P1000
- Pump Type: Hand
- Pump Handle Effort @ Rated Capacity: 95 lbs.
- Bed Depth: 11″
- Bed Positions: 8
- Hose Size: 6 ft.
- Design: HBase
- Press Length: 28″
- Press Width: 42.75″
- Press Height: 70″
- Internal Width: 30″
- Channel Width: 6.75″
- Working Height: 6.5″ – 49.5″
- Press Dimensions: 70.00″ x 42.75″ x 30.00″
- Press Weight: 484 lbs.
- Warranty: 2 Years Limited
