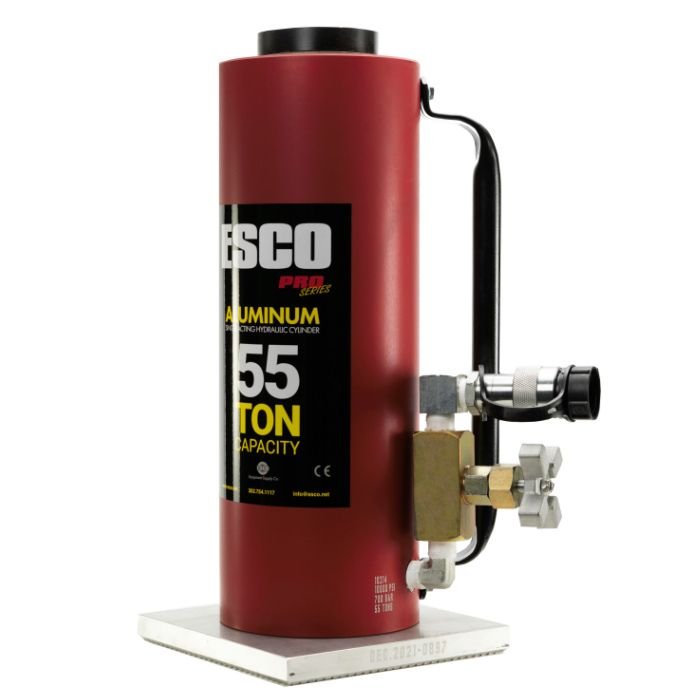

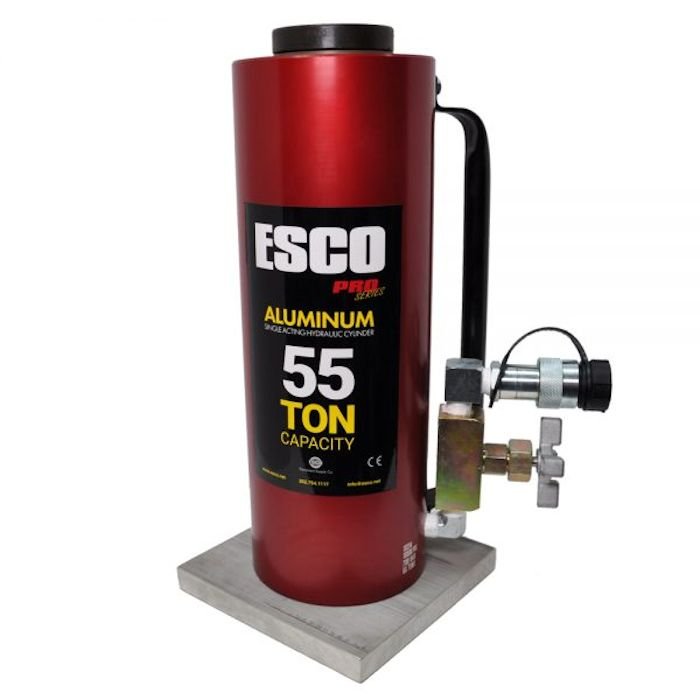

The ESCO Professional Aluminum Jack Cylinder Series is designed for high-capacity, precision lifting applications. The Heavy-Duty construction provides longevity and reliability when faced with continual use in the shop or field. The ESCO 55-Ton Jacks are ideal for technicians who work on large equipment including trucks, tractors, mining, and construction equipment.
Features
- Lightweight Aluminum Constructed Hydraulic Cylinder
- Must-Have For Heavy Lifting Applications
- Perfect Jack For Off-Highway Tire Work
- For Use With 10,000 PSI Pumps

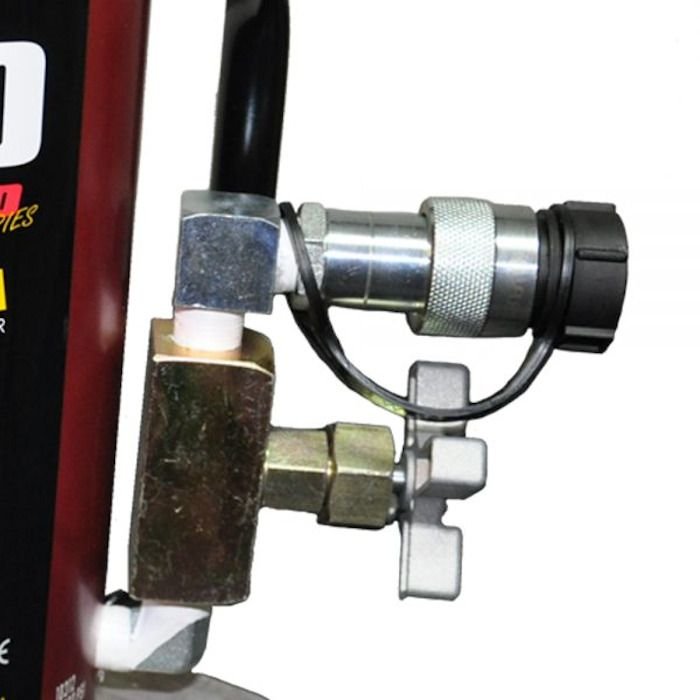

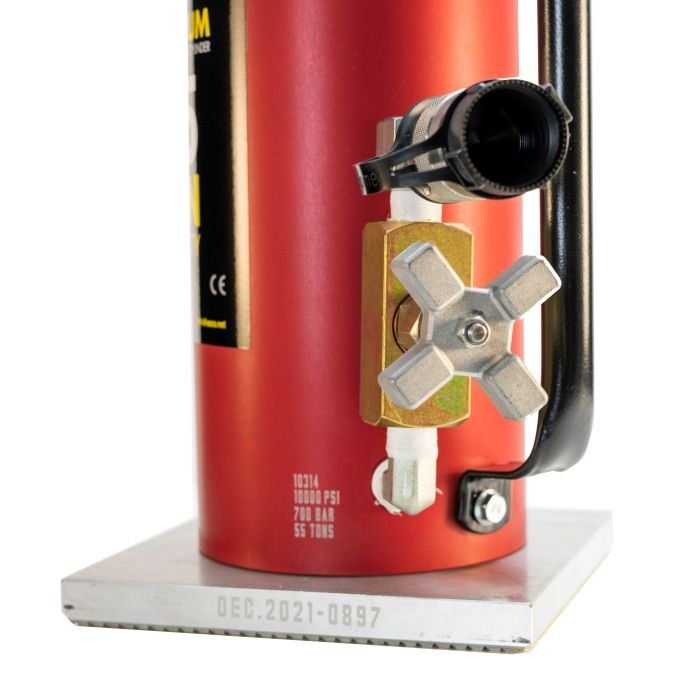

- Ships Completely Assembled With Valve, Coupler, And 8″ X 8″ (203mm X 203mm) Base
- Ideal For OTR, Mining, Agricultural, And Construction Applications
- Robust 11/16″ Cylinder Wall For Heavy-Duty Use
- 6″ (152mm) Stroke With 26″ (662mm) Maximum Height

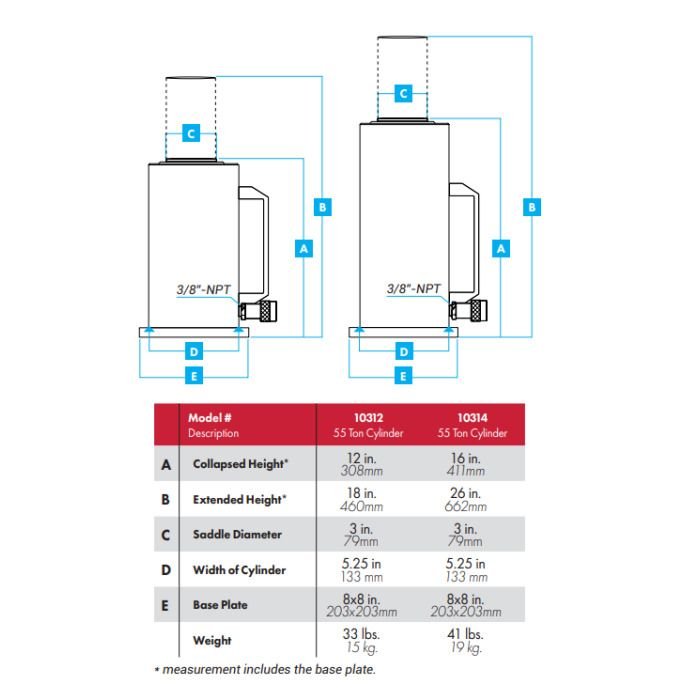

Specifications
- Lifting Capacity: 55 Tons
- Stroke: 6″ (152mm)
- Max Pressure: 10,000 PSI
- Min. Height: 16″ (411mm) – Includes Base Plate
- Max. Height: 26″ (662mm) – Includes Base Plate
- Saddle Diameter: 3″ (79mm)
- Cylinder Width: 5.25″ (133mm)
- Cylinder Wall: 11/16″ (17mm)
- Base Plate: 8″ x 8″ (203 x 203mm)
- Weight: 41 lbs. (15 kg)
- Warranty: (3) Year Limited*
