PRO Z 960 S EFI
Priced at Cub Cadet unit fleet sale 20% off msrp
SET UP AND PREP FEES MAY APPLY

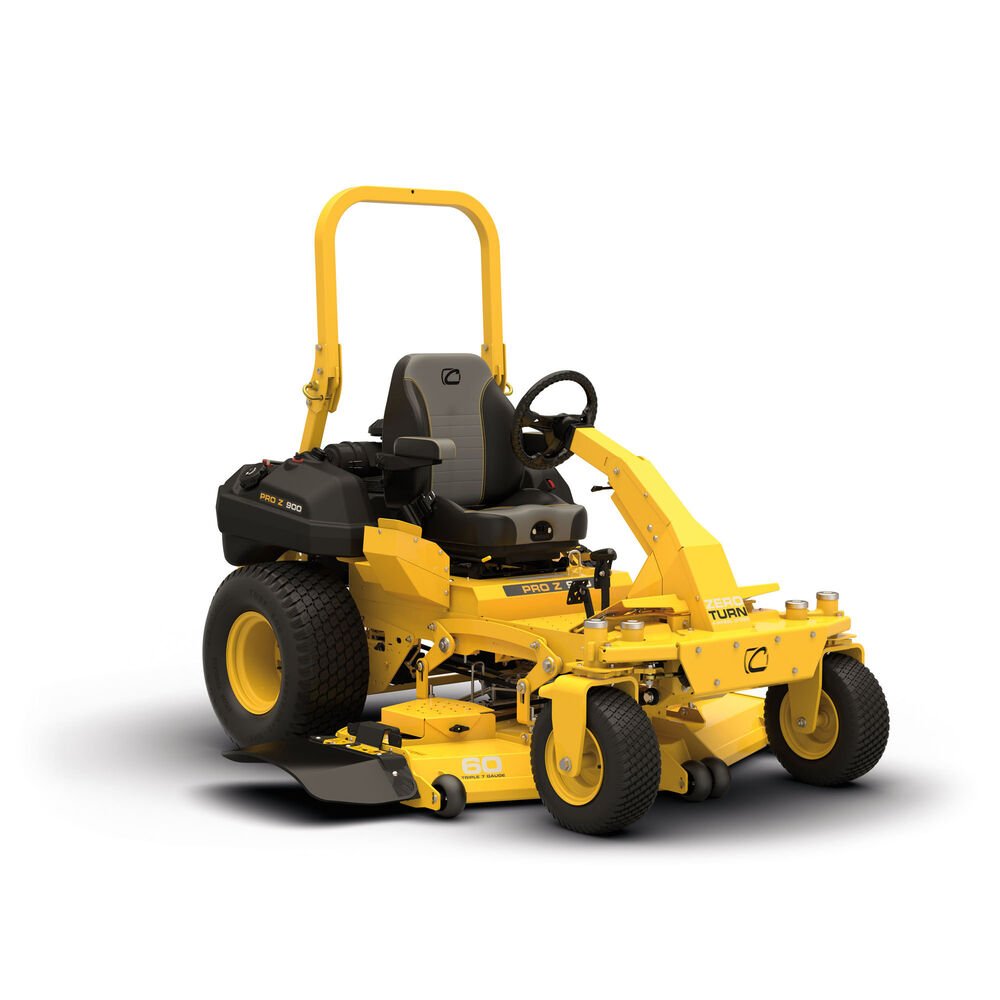

The Cub Cadet® PRO Z 960 S EFI 60-in. 38.5 HP* Commercial Zero-Turn Lawn Mower With Synchro-Steer™ Technology And EFI Engine features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Category exclusive steering wheel control technology is designed to allow you to conquer slopes up to 20 degrees. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime.
- 38.5 HP Kawasaki FX1000v (999cc) EFI engine and 16cc Hydro Gear 5400 transmission
- 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
- 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty
Engine
- Engine Brand: Kawasaki
- Engine Model: FX Series EFI FXT00V-BS42
- Engine Displacement: 999cc
- Engine Output: 38.5 HP
- Fuel Tank Capacity: Twin 7.45 gal. tanks (14.9 gal. total)
- Charging System:15 amp regulated
- Fuel Delivery: Electronic Fuel Injection (EFI)
Drive System
- Transmission: 16cc Hydro Gear 5400
- Forward Speed; 14 mph
- Reverse Speed: 6 mph
Cutting Deck
- Deck Cutting Width: 60”
- Deck Material: fabricated 7ga. (.187”) steel shell
- Deck Engagement (PTO): electronic fingertip engagement pto
- Deck Construction: 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
- Spindle Construction: 8″ sealed cast aluminum housing (maintenance-free)
- Blade(s): 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Cutting Height Range: 1″ – 5″ 1/4” increments
- Anti-Scalping: 2 front deck gauge wheels
- Deck Positions: Foot pedal with spring assist, 16 Positions
Chassis
- Frame: Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots
- Front Axle(s): 2″ x 3″ solid axle tube with ISO dampening suspension
- Front Tires: 16″x6″-6″Reliance Carlisle run flat
- Rear Tires: 26″ x 12″ – 12″
- Tire Tread: Turf Tread
- ROPS: 2″ x 2″ spring-latch tool-less foldable 3 position
- Bumper : 5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes: 1/2″ thick steel front yokes
Controls
- Brakes: Hand-operated lever with integrated hydro pump release lever
- Steering Wheel Control: High Performance Steering Wheel with electronic power steering & Foot-pedal Control
Comfort
- Seat Type: Cushion with seat belts
- Arm Rests: Padded arm rests
- Seat Suspension: High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension)
- Seat Adjustment: Angle back adjust and lumbar support
Dimensions
- Dimensions: L/W/H 88″ L x 73″ W x 48″ H
- Weight (approx.): 1580 lbs.
Additional Specifications
- Hour Meter: Crew Boss
- Discharge Chute: High-density, impact-resistant rubber
- Cup Holder: Intergrated into Side Pod
- Model Number: 53RLHUUV050
Warranty
- Residential Warranty: 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
- Commercial Warranty: 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
- AIR FILTER: KM-11013-7044
- PRE FILTER: KM-11013-7045
- OIL FILTER: KM-49065-0724
- FUEL FILTER: KM-49019-0031
- SPARK PLUG: KM-BPR5ES
- DECK BELT: 954-04319
- PTO BELT: 954-05128
- DRIVE BELT: 754P07149
- BLADES: 942-04415 OR 490-110-C163
- XTREME BLADE: 02005019-X
- IGNITION KEY: 925-06908
- TRANS FILTER: HG-71943 NEED 2
- TRANS FLUID:
- ENGINE OIL: 490-000-C044
