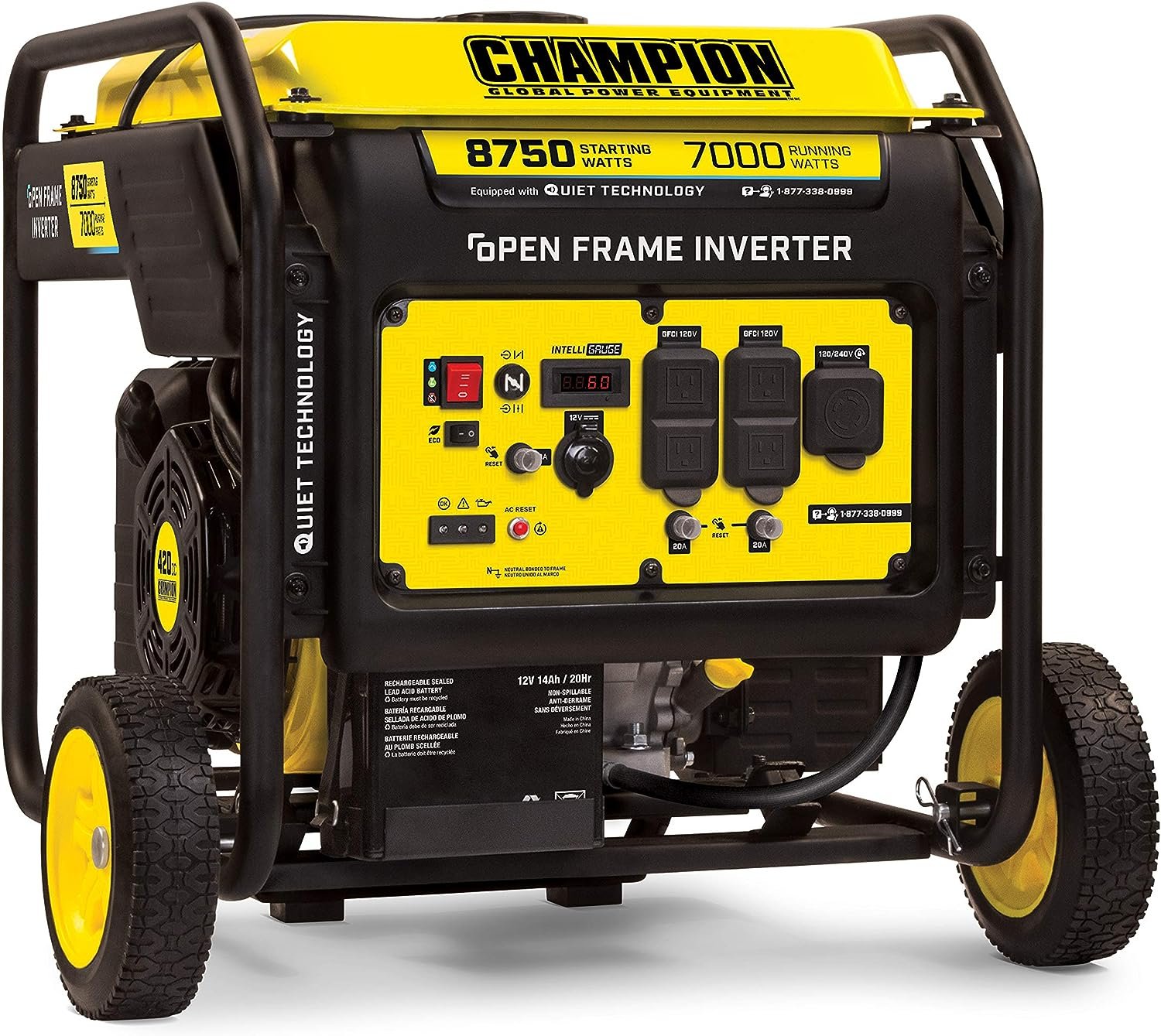

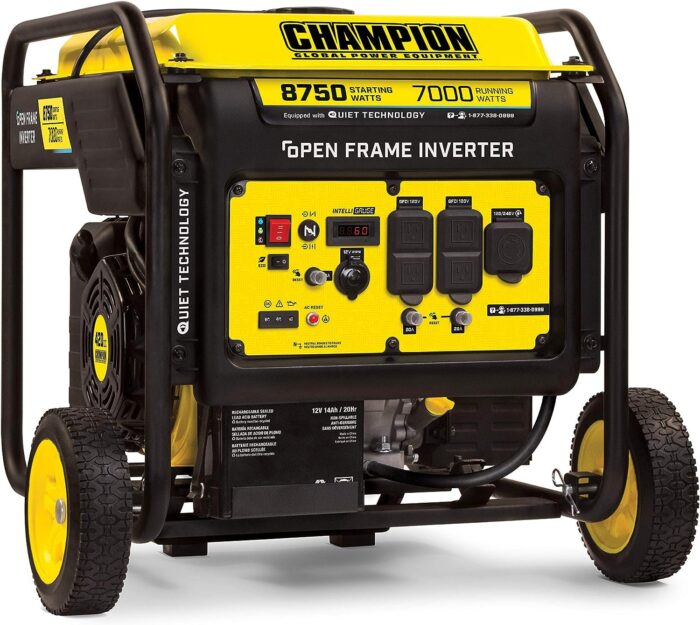

Champion 100520 5000 Watt 301cc Open Frame Inverter
Champion’s 8750-Watt Open Frame Inverter features push-button electric start with an included battery. With Quiet Technology, Intelligauge, Economy Mode, and Clean Power, this inverter is a lightweight, cost-effective, and advanced power solution.
The Champion Power Equipment 100520 8750-Watt Open Frame Inverter Generator is 30% quieter and 25% lighter than a traditional 7000-watt portable generator. Powering your life takes on a whole new meaning with our feature-packed, innovative technology and design.
We cut the noise level in half by integrating Quiet Technology digital inverter components. Then, we created an efficient mechanical design to decrease the overall footprint and weight by 25 percent. A quiet, lightweight, and cost-effective power solution, this inverter is smaller, quieter, lighter…BETTER!
Enjoy on/off push-button power with electric start, battery included, plus Cold Start Technology ensures a quick start in cold weather.
The Intelligauge monitors voltage, frequency and operating hours with ease.
Champion’s reliable 420cc engine produces 8750 starting watts and 7000 running watts, and runs for 10.5 hours at 25% load when the 4.2-gallon fuel tank is full.
This inverter has a noise level of 72 dBA from 23 feet, which is a bit louder than a vacuum.
This unit holds 1.2-quarts of oil (recommended 10W-30) and features a low oil shut-off sensor and a Quick Drain oil tube for easy changes.
Confidently connect your sensitive electronics since our hybrid produces only Clean Power (less than 3% THD).
Our Quick Touch Panel offers fast access to controls, while Economy Mode monitors power consumption in real time to reduce electrical load, providing quieter operation, extended engine life and higher fuel economy.
The covered outlets in this inverter include a 120/240V 30A locking outlet (L14-30R), four 120V 20A GFCI protected household outlets (5-20R) and a 12V DC automotive-style outlet with a dual USB adapter and battery-charging cables.
The foldaway handle and never-flat tires make transport and storage a cinch.
Buy this fully assembled EPA certified and CARB compliant inverter with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.
What’s included
- Flexible Oil Funnel
- USB Adapter
- Battery Charging Cables
SPECIFICATIONS
| Gasoline Starting Watts | 8750W |
|---|---|
| Gasoline Running Watts | 7000W |
| Gasoline Starting Amps at 120V | 72.9A |
| Gasoline Starting Amps at 240V | 36.5A |
| Gasoline Running Amps at 120V | 58.3A |
| Gasoline Running Amps at 240V | 29.2A |
| Volts | 120/240 |
| Frequency | 60Hz |
| Outlets | 12V DC Automotive, GFCI 120V 20A Duplex (5-20R), 120/240 30A Locking (L14-30R) |
| GFCI Outlets | Yes |
| Covered Outlets | Yes |
| Gasoline Run Time at 1/4 Load | 10.5 h. |
| Noise Level | 72 dBA |
| Inverter | Open Frame |
| Parallel Capability | No |
| DC Operation | Yes |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | No |
| Battery | Yes |
| Start Type | Electric |
| Engine Brand | Champion |
| Engine Size | 420cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline |
| Fuel Gauge | No |
| Gasoline Capacity | 4.2 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 1.2 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 8 in. |
| PGMA G300-2018 Compliant | No |
| EPA Certified | Yes |
| CARB Compliant | Yes |
DIMENSIONS
| Length | 26.6 in. |
|---|---|
| Width | 25.6 in. |
| Height | 23.7 in. |
| Weight | 155.4 lb. |
