BendPak’s newest PL-12000DP and PL-12000DPS parking lifts are revolutionary vehicle storage solutions for those challenged with owning more cars and trucks than parking spaces to store them. They can greatly expand the number of cars in a facility without expanding building space. As the costs of commercial and residential development increase, gaining additional parking spaces in the same usable space provides instant value. These mechanical parking systems are designed to increase parking density and cut costs over traditional parking methods.
Features
- Standard Rise and Length Model PL-12000DPS
- Two Independent Platforms
- 6,000 Lb. Capacity Per Side
- Dual Hydraulic Cylinders With Heavy-Duty Galvanized Lifting Cables
- Multiple Locks For Multi-Height Parked Settings
- Wide Baseplates For Maximum Stability
- Dual Electric-Hydraulic Power Units
- Heavy-Duty Steel Construction
- Front and Rear Wheel Chocks
- Built-In Wheel Stops
- High-Speed Lifting
- For Commercial Or Residential Use
- Perfect For Cars, Light Trucks, Motorcycles, And ATVs
- Superstructure Features Durable Powder-Coat Finish
- Full-Width Platforms to Keep Bottom Vehicles Protected
- Lightweight, Extended Aluminum Approach Ramps Can Be Easily Stowed

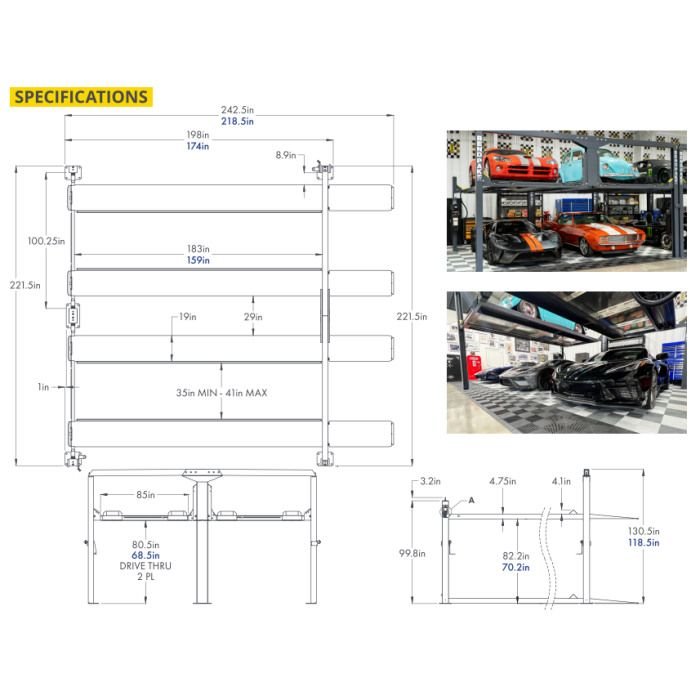

Specifications
- Style: Multi-Platform Parking Lift
- Model: PL-12000DPS
- Number of Platforms: 2
- Load Capacity per Platform: 6,000 lbs. / 2,722 kg
- Total Width: 221.5″ / 5,6241 mm
- Outside Length: 174.5″ / 4,418 mm
- Total Length: 218.5″ / 5,550 mm
- Total Height: 118.5″ / 3,009 mm
- Min. Runway Height: 4.75″ / 121 mm
- Maximum Rise: 70.2″ / 1,784 mm
- Width Between Posts: 211″ / 5,362 mm
- Width Between Short & Double Posts: 100.25″ / 2,546 mm
- Width Between Platforms: 29″ / 739 mm
- Width Between Runways: 35″ or 41″ / 887 or 1,045 mm
- Runway Length: 159″ / 4,039 mm
- Runway Width: 19″ / 482 mm
- Drive Thru Height: 68.5″ / 1,742 mm
- Drive Thru Width: 85″ / 2,161 mm
- Outside Edge of Runways: 76 or 82″ / 1,930 or 2,083 mm
- Safety Lock Positions: 6
- Lifting Time: ≈45 Seconds
- Power Unit / Motor: 220 VAC, 50/60 Hz, 1 Ph
- Warranty: (2) Years on Structure, (1) Year on Hydraulics, (1) Year Electrical, (1) Year Labor
