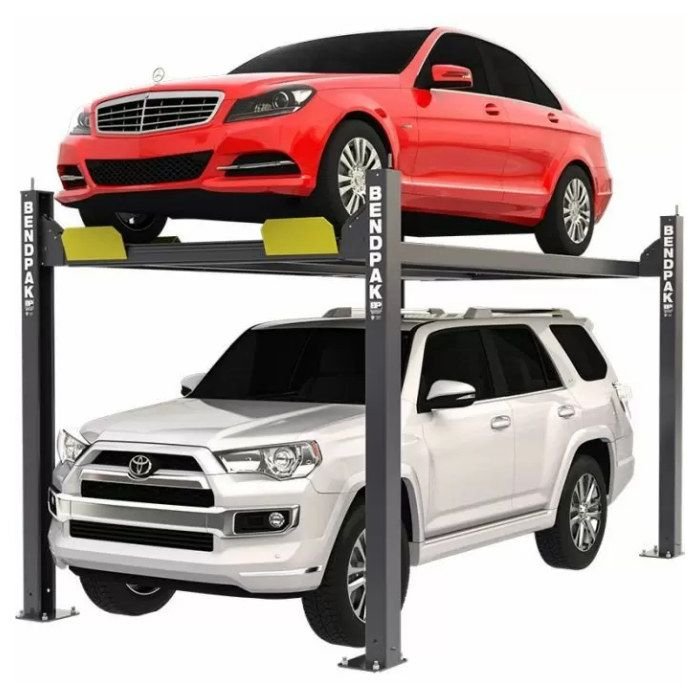

horter length and extra height, the HD-7P lift is the ultimate in compact convenience when you want the lifting power of a BendPak in a tight space.
Features
- 7,000-lbs. maximum lifting capacity
- High lift with short runways
- Electric / hydraulic power system

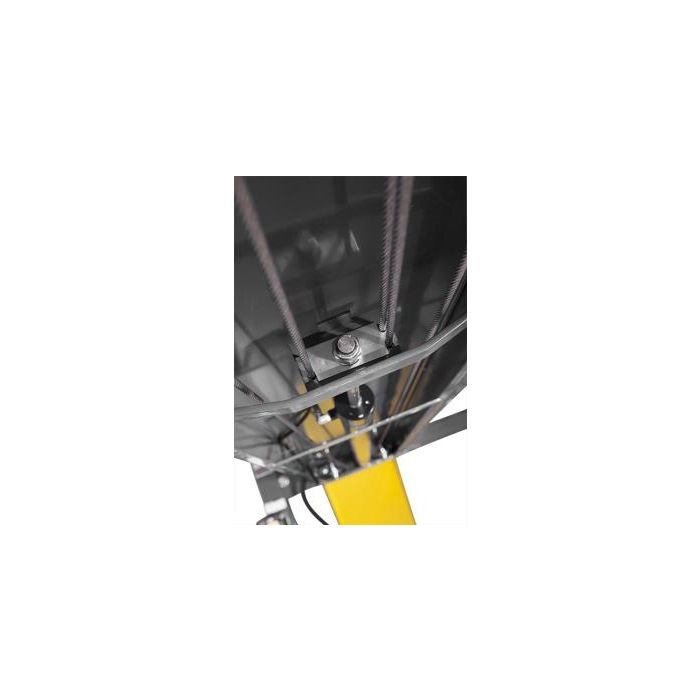

- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column

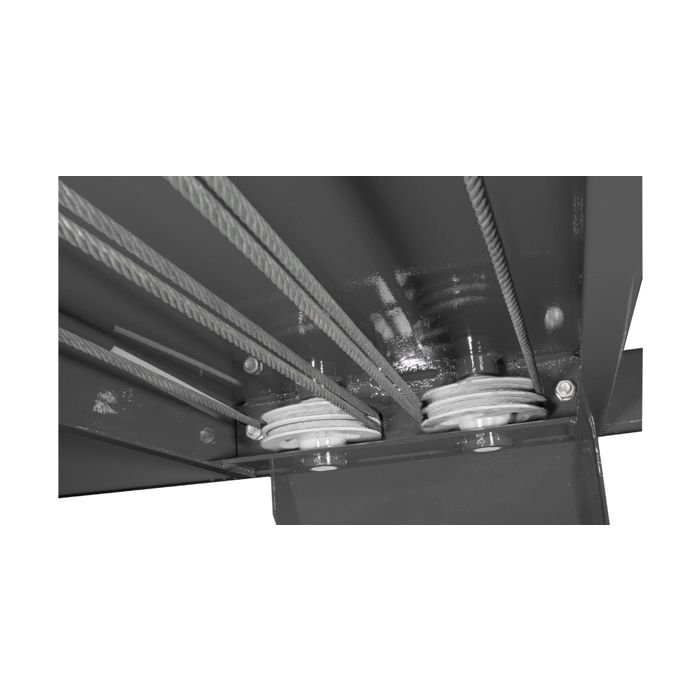

- Oversized self-lubricating cable rollers
- High-speed lifting
- Features heavy-duty 3/8″ aircraft cable
- Rugged 1-1/4″ roller axles

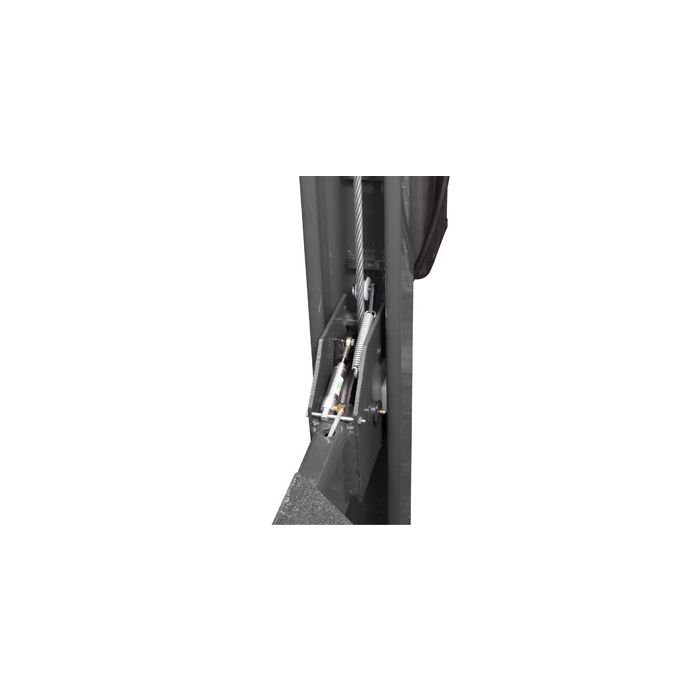

- Multi-position safety locks in each column
- Adjustable lock ladders
- Push-button pneumatic safety release
- Removable steel approach ramps included
- Optional 4,500-lbs. capacity rolling jack available (Model RJ-45)
Specifications
- Lifting capacity*:7,000 lbs. / 3,175 kg
- *Max capacity / front axle: 3,500 lbs. / 1,588 kg
- *Max capacity / rear axle: 3,500 lbs. / 1,588 kg
- Overall width: 100″ / 2,542 mm
- Outside length: 174″ / 4,420 mm
- Overall length: 200″
- Height of columns: 100″ / 2,542 mm
- Runway min height: 5″ / 125 mm
- Max rise: 82″ / 2,083 mm
- Max lifting height: 87″ / 2,208 mm
- Width between posts: 90″ / 2,288 mm
- Runway width: 19″ / 482 mm
- Width between runways: 37″ / 945 mm
- Runway centerline: 56″ / 1,422 mm
- Outside edge of runways: 75″ / 1,905 mm
- Drive-thru clearance: 76-3/4″ / 1,949 mm
- Length of runways: 164-1/2″ / 4,178 mm
- Min wheelbase @ rated capacity: 115″ / 2,921 mm
- Min wheelbase @ 75% capacity: 100″ / 2,540 mm
- Min wheelbase @ 50% capacity: 85″ / 2,159 mm
- Min wheelbase @ 25% capacity: 70″ / 1,778 mm
- Locking positions: 15
- Lock spacing: every 4″ / 102 mm
- Lifting time: 45 sec
- Motor: 220 VAC / 60 Hz / 1 Ph
- Shipping Weight: 1,942 lbs. / 883 kg
- Shipping Dimensions: 172″ x 29″ x 54″ / 4,369 mm x 737 mm x 1,372 mm
- Height to underside of runways when at top lock position – 78″
